Essential Guide to the Parts of a Window: Understanding Your View

Are you considering investing in replacement windows? Or maybe you’re working on a new home project and exploring window options. Either way, choosing the perfect units is possible only if we understand all the parts of a window, their roles, and how they affect a window’s efficiency and functionality.

As such, if you’re here to learn these details, keep reading! We’ve prepared a straight-to-the-point guide that will help you see a window unit from a broader perspective and understand how all its components work together to insulate your home and make it as comfortable as possible!

Key Takeaways

• The main parts of a window are the frame, sash, and glass.
• The frame consists of the head, jambs, sill, stool, mullion, transom, and weep holes.
• The sash usually has a top and bottom rail, check rails, stiles, and grilles.
• A window may have one or more glass panes and can be equipped with low-E coatings. Insulated glass units are filled with gas and feature a warm-edge spacer.
• Window parts also include caulking, weatherstripping, trims, hinges, tracks, and locking systems that enhance a window’s operation, security, and insulation. These components vary based on the type of window – a casement window is usually operated by a crank, while a sliding window slides along a track.

Parts of a Window: A Detailed Guide

The anatomy of a window is much more than just a pane of glass fitted onto a frame. It’s a carefully designed structure that balances aesthetics, functionality, and insulation. So, what exactly goes into a well-designed window? Let’s find out!

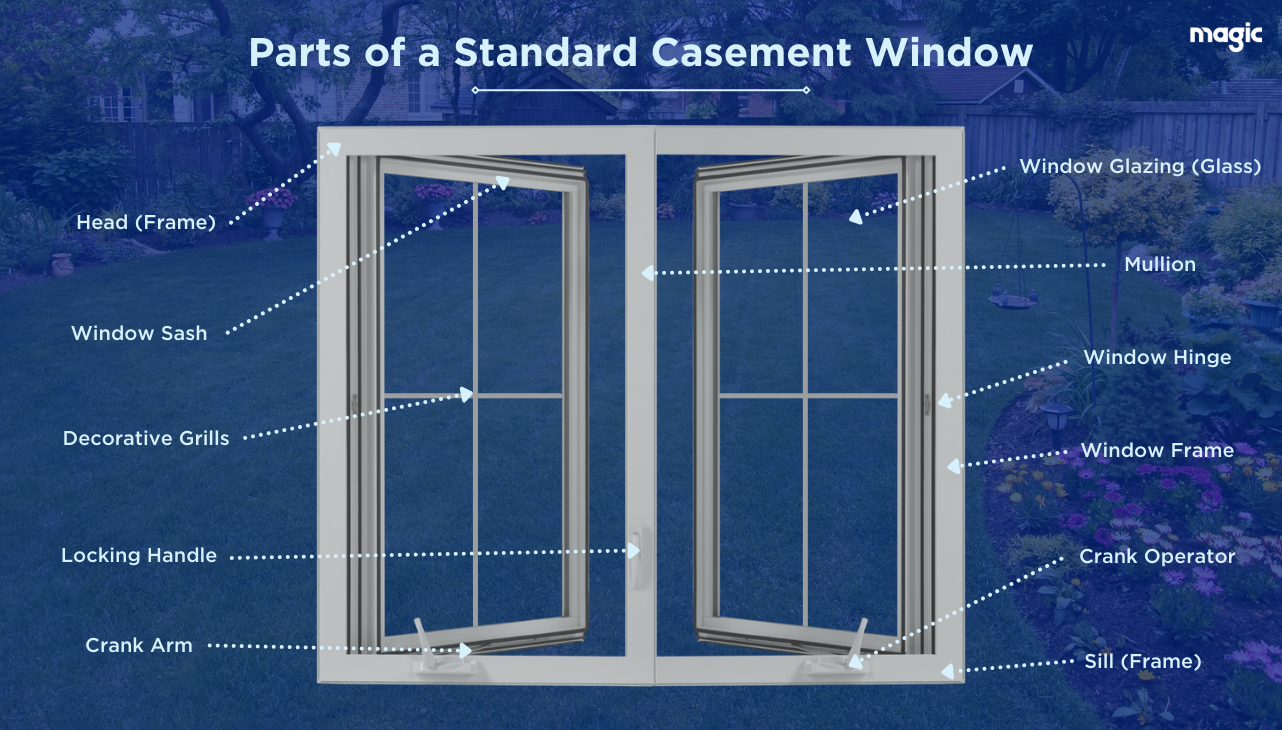

1. The Window Frame: Support and Style

The window frame is a structure that surrounds and supports the sash and the glass. The window frame has several components:

• The head is the topmost horizontal part.
• The jambs are the vertical sides of the frame.
• The sill is often called a horizontal strip. It is the bottom horizontal part of a window frame. The window sill can protect the window from the elements, particularly rain, as it’s slightly inclined to direct rainwater away from the window.
• The stool is similar to the sill, except that it’s on the inside. It is the space we use to put plants on.
• The mullion is a vertical divider between two glass units.
• The transom is a horizontal divider between two glass units.
• Weep holes are small openings usually installed at the bottom of the window frame. They are designed to prevent water accumulation. Magic uses an advanced Hi-Flo polycarbonate drain system that eliminates water buildup and prevents insect penetration and air drafts.

2. Sash Essentials: Holding the Glass

The window sash is the structure that holds the glass panes. It plays a critical role in the window’s structure and functionality.

Single or double-hung windows have two sashes – the lower and the upper sash. To open or close single-hung windows, you slide one sash vertically while the other remains fixed. Casement windows also have sashes, except that they are hinged on one side and open outwards at a 90-degree angle. If you install double casement windows, both sashes will be operable.

The window sash consists of:

• top rail – the top horizontal sash part
• bottom rail – the bottom horizontal sash part
• check rails – in the case of single- or double-hung windows, for example, the sash parts that connect in the middle are called check rails
• stiles – the vertical sash parts
• grilles – if one sash has multiple glass panes, they are held together by grilles, which are stripes of wood or other chosen material that hold the glass in place by forming a grid and offering the window a traditional look.

3. Clarity Through Glass: Pane Options

Glass panes are the soul of a window. They let in light, provide a view of the outside world, and play a significant role in the window’s insulation.

The glass is held in place by the sash. Some windows have only one glass pane and no other components. Other windows have two or three panes of glass. In this case, they form an Insulated Glass Unit.

The panes of glass can be equipped with low-E coatings. These are added directly to the glass. They help the window regulate the solar heat that comes through it. Therefore, low-E coatings can significantly improve a window’s insulating properties and contribute to lower energy bills.

Low-E coatings play a crucial role in lowering a window’s U-factor (a coefficient that determines the rate at which heat escapes through windows) and Solar Heat Gain Coefficient (a metric that determines how much solar heat enters the home through windows).

The Daylight Opening (DLO) is another significant component. It refers to the part of the window that is pure glass, devoid of elements like sash stiles and rails or the frame. DLO is instrumental in maximizing the light entering a room, thus brightening your spaces while offering a view of the outside world.

Insulated Glass Units (IGUs)

When two or more glass panes are combined for a window, they form an Insulated Glass Unit (IGU). Here are the components of an IGU:

• Inert Gas. The space between the panes of glass is filled with an inert gas, usually krypton or argon. The added gas can impede the transfer of heat and, therefore, play an essential role in insulating the window unit. The space between the glass panes usually measures only ¾ of an inch. However, if you choose Magic products, you’ll get much better-insulated units. That’s because our patented Parallex Hardware allows us to extend this space to an inch. Therefore, we can add approximately 25% more gas.
• Warm-edge spacer. Warm-edge spacers are placed at the edges of an IGU. They are responsible for keeping the panes of glass apart from each other. This way, spacers ensure that the window units remain energy-efficient and well-insulated. Magic warm-edge spacers are much more efficient than others on the market. Since we’ve brought glass production in-house, we make sure to add the best, longest-lasting products. That’s why we’re using a duralight soft edge spacer consisting of a 4-layer material that expands and contracts naturally with any unit movement.

4. Window Aesthetics: Trims

A window trim is a structure that surrounds the frame. On the exterior, it is applied to insulate the unit, but it can also enhance a house’s curb appeal. On the interior, window trims serve as an excellent way to enhance room design.

Window trims are highly customizable, which is why most homeowners choose to install them. For example, if you’ve upgraded your living room design, and the windows don’t fit in anymore, you can adorn them with window trims that will make the transition more harmonious and aesthetically pleasing.

5. Window Insulation: Caulking and Weatherstripping

A window unit should be well-sealed through caulking and weatherstripping.

Caulking is only used for non-movable parts, meaning around the window frame. However, if we’re talking about trimmed-out windows, caulking isn’t necessary anymore.

Weatherstripping is designed particularly for movable parts. It’s applied on the sashes and acts as an additional insulating layer against the elements, thus making the window more energy-efficient.

6. Opening and Closing: The Mechanics Behind the Movement

While windows may seem simple, the mechanisms that allow them to open and close are intricate and varied. For instance, casement windows open outward using a combination of hinges and a cranking mechanism. This design allows for efficient entry of fresh air and natural light. Keep reading to learn more!

Casement Window Dynamics

Casement windows are among the most sought-after modern windows. Most casement windows have hinges on one side that hold the sash when the window is open. They are operated by a crank. Although the crank makes these windows quite easy to use, especially for people with disabilities, cranks are mechanically flawed. They strip, break, and loosen over time. Cranks may also cause the infamous “sash-sag” that can significantly shorten a window’s lifespan.

Magic has decided to make cranks obsolete by implementing our patented Parallex Hardware. Instead of being operated by a crank, our casement windows open differently – you have to slide the window sash outward along a horizontal axis. The sash remains attached to the frame at the top and the bottom. This system completely eliminates the risk of sash-sag and improves the window’s functionality.

The Versatility of Double-Hung Windows

On the other hand, a double-hung window features two vertically sliding sashes that can move independently.

Double-hung windows usually have:

• Tilt latches – they keep the window in the upright position.
• Pivot bar – it’s located in the lower sash and is the part that allows the window to tilt.
• Pivot lock shoes – they lock the window into place when it’s tilted.
• Sash lifts – a small handle on the bottom rail of the lower sash.

Sliding Window Parts

Many homeowners prefer sliding windows above others for their ease of operation. Furthermore, they do not require additional exterior space when open. Sliding windows usually have the same components we’ve mentioned above, plus the track and the rollers that allow them to slide open.

7. Window Locks for Enhanced Security

Locking mechanisms are essential for window security. They not only prevent intruders from entering but also contribute to insulation. For instance, double-hung windows have a sash lock that enhances security by creating a tighter seal, preventing drafts, and reducing heat loss.

You can equip your windows with customized locks featuring varying security grades. If you choose Magic, you’ll receive a multi-point window lock, which locks the window in several places simultaneously by pushing the sash firmly against the frame. You can also opt for our cam locks, which have a cam and a base. The cam rotates the base before latching onto the sash. This holds the sash locked in place against the frame.

Whichever option you choose, our 40-grade security systems feature the highest attainable security rating, which means you’ll feel safe and comfortable in your house!

8. Window Screens, Shades, and Blinds

Besides the standard components, windows can also feature extra elements – insect screens, for example.

Most insect screens on the market obstruct the view because they’re always in place. They also block light and can become clogged with dirt and allergens. On the other hand, Magic screens are fully retractable – in other words, you can hide them within the frame when not in use.

You can also install our solar shades and blackout blinds – both retractable as well. The solar shades can efficiently block sun rays and make it more comfortable for you to stay in the living room in the afternoon. They also ensure some degree of privacy.

The blackout blinds are designed to offer perfect privacy by completely blocking the view. They can also limit sounds and light pollution at night. In addition, our blackout blinds serve as a third glass pane, which is one of their most valued advantages.

While a triple-pane window is highly energy-efficient, it can slightly obstruct the view, especially when equipped with low-E coatings. Triple-glazed windows also weigh much more than double-glazed windows, so you’ll need a highly resistant frame that can withstand the weight of this IGU. That’s why our blackout blinds are an excellent alternative if you’re looking for a highly energy-efficient window. Magic blinds make a window 40% more energy-efficient and lower its U-Factor to 0.17.

Choosing a Window Frame Material

Having discussed all parts of a window, why don’t we turn our attention to the material that makes all these parts highly efficient? After all, the stronger the frame material, the more efficient, insulated, and long-lasting a window is.

Homeowners usually opt for:

• Vinyl window frames. They are energy-efficient and require little maintenance. However, they do not last too long, especially if you live in regions with extreme weather temperatures.
• Aluminum windows. Aluminum windows are extremely strong, durable, and inexpensive. However, they have a high U-factor. This means aluminum windows lose heat and cold quickly, so they’re not as energy-efficient as vinyl windows.
• Wood windows. Wood windows are praised for their aesthetic value. However, they are quite expensive, are prone to rot and mildew, and require regular maintenance.
• Magic Hybrid Fusion Frame. Our technologically advanced frame material combines steel, aluminum, and vinyl. Our special formula makes Magic windows exponentially more durable and energy efficient than other windows on the market. They are extremely sturdy, allowing us to make the thinnest frames on the market! In addition, our window installers are highly proficient at what they do, making sure that the window is well-insulated and everything works perfectly! No wonder we’re offering an industry-leading 40-year warranty!

Ready to Get the Best Replacement Windows? Contact Magic Today!

In conclusion, understanding the anatomy of a window and the mechanics behind its movement can help you make informed choices when considering replacements or new installations. Whether you opt for a traditional casement window or a double-hung window, remember that the choice of materials, the use of energy-efficient coatings, and proper installation and maintenance can significantly enhance the functionality and longevity of your windows.

If you have any questions regarding the parts of a window or want to learn more about our products, contact Magic today for a free consultation! We’re ready to embark on this journey with you and provide any assistance you might need!

Frequently Asked Questions

What are the main parts of a window?

The main parts of a window are the frame, the sash, and the glass. In turn, these components have other parts that make them functional. For example, the frame consists of the head, the jambs, and the sill, while the sash has a top and bottom rail. The window can also have a trim, locking systems, insect screens, and solar shades.

What is the difference between a sash and a frame in a window?

The main difference between a sash and a frame in a window is that the frame is the stationary part that encases the sash. In turn, the sash is the movable panel that holds the glass pane in place.

What is the role of Low-E coatings on window glass?

Low-E coatings on window glass help improve insulation by reflecting interior temperatures back inside, which helps maintain a consistent climate within the space.

How do triple-pane windows enhance energy efficiency?

Triple-pane windows enhance energy efficiency by using three glass panes separated by gas, such as argon or krypton, which increases their insulative properties and reduces heat loss. This can result in lower energy bills and a more comfortable indoor environment.

What is the function of window tracks and rails?

Window tracks and rails guide the movement of the window sash and contribute to the window’s structural integrity. They enable smooth opening and operation of the window.
